MONORAIL AND MONORAIL MINI

Monorail and Monorail Mini are new coplanar sliding systems for wardrobes and cabinets. When closed, all fronts form one perfectly flat surface. Two systems, one uncompromising finish.

Monorail and Monorail Mini – New Coplanar Systems Now Available

Perfectly aligned fronts when closed. No gaps, no offsets, no imperfections. Monorail for sliding wardrobes and Monorail Mini for sliding cabinets are new coplanar systems that combine precision engineering with everyday comfort.

What is a coplanar system and why does it matter?

A coplanar sliding system ensures that all door fronts align into one perfectly flat surface when closed – no offsets, no unevenness. The result is a clean, elegant finish that gives any furniture unit a modern, refined character. It is the solution for projects where every detail counts.

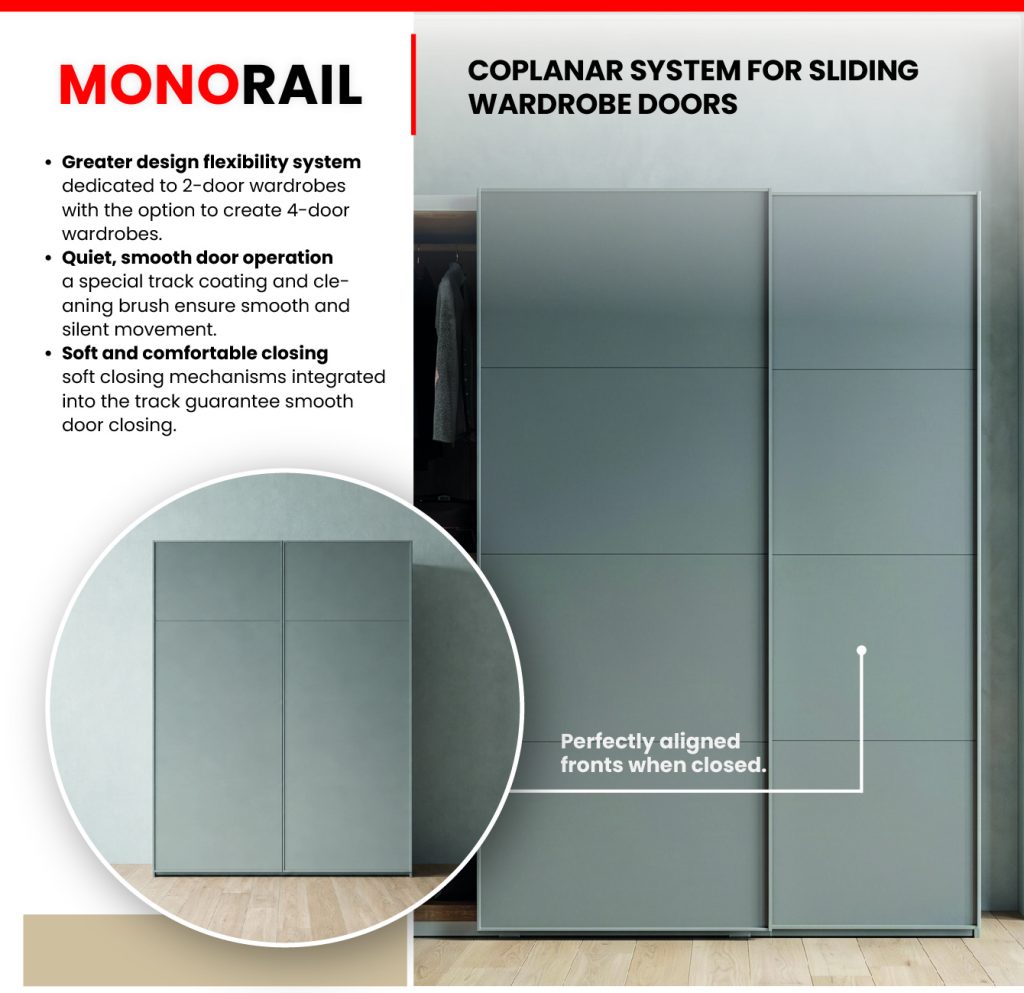

Monorail – coplanar system for sliding wardrobes

Monorail coplanar sliding system is designed for 2- and 4-door sliding wardrobes. When closed, all fronts form one perfectly flush surface, elevating the overall appearance of the furniture.

The system handles door fronts 18–45 mm thick with a maximum load of 80 kg per door. Both overlay and inset fronts can be used. Monorail is available in four rail lengths – 1650, 2050, 2450 and 2850 mm – with a cut-to-size option, allowing the system to fit cabinet widths from 1350 up to 2850 mm. Top and bottom running fittings are factory-mounted on the rail, reducing installation time. Soft-closing mechanisms integrated into the track, combined with a special rail coating and track-cleaning brush, ensure quiet and smooth door operation throughout the entire service life.

DOWNLOAD MONORAIL CARD

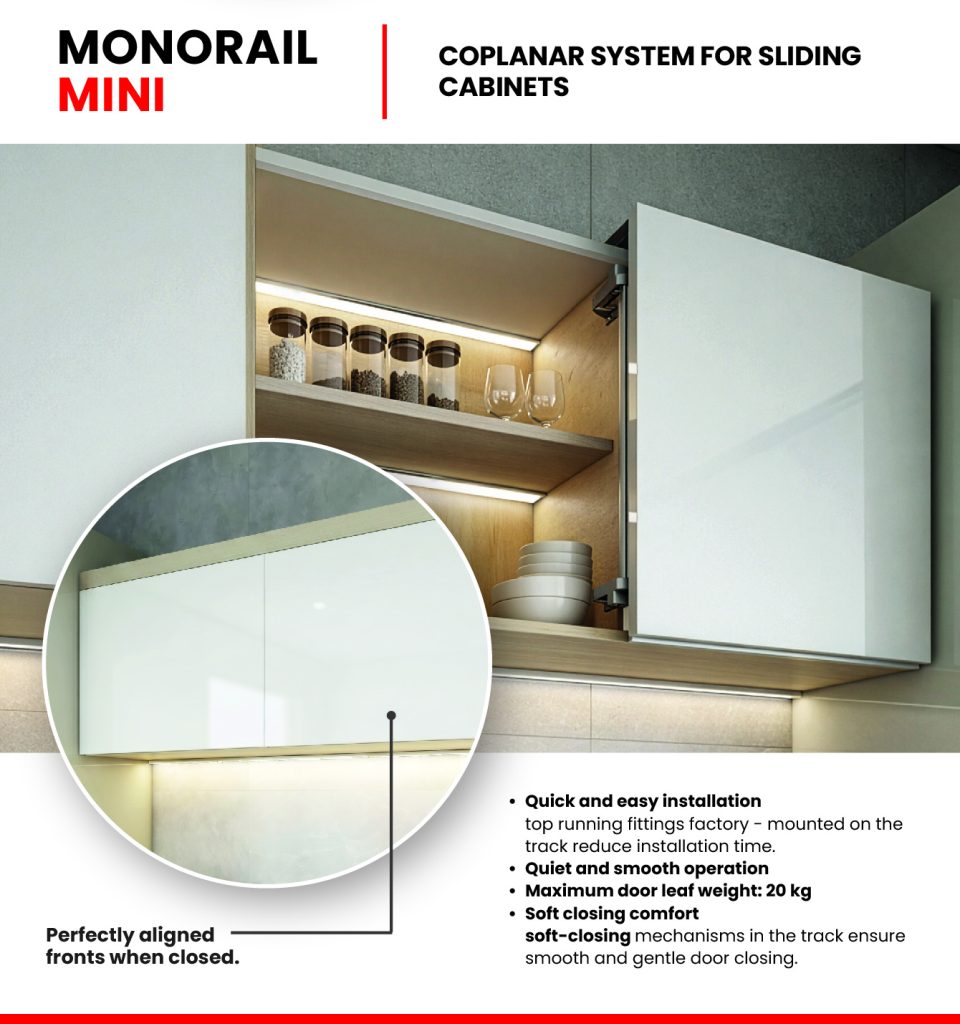

Monorail Mini – coplanar system for sliding cabinets

Monorail Mini coplanar sliding system is designed for wall-mounted and floor-standing cabinets – in kitchens, bathrooms and living room furniture. When closed, all fronts form a perfectly flat surface. When opened, the doors remain within the cabinet outline without extending beyond its depth – which makes it a practical solution even in smaller spaces.

The system handles fronts 15–22 mm thick with a maximum load of 20 kg per door. Available in two sizes: Monorail Mini 1750 – cabinets up to 1750 mm wide, door width 600–900 mm, height up to 1000 mm – and Monorail Mini 2350 – cabinets up to 2350 mm wide, door width 900–1200 mm, height up to 1500 mm. Both versions feature a cut-to-size rail. Top running fittings are factory-mounted on the upper rail for faster installation, and a special rail coating with a track-cleaning brush ensures smooth, silent sliding throughout the system’s service life.

DOWNLOAD MONORAIL MINI CARD

Ready for any project

Both systems are available with rails cut to size according to individual orders. Monorail and Monorail Mini are solutions that adapt to any project – regardless of scale or application.
