Construction systems

Synchronik

Application: system for interior sliding passage door opening synchronously

Type of doors 2 doors open simultanously.

Number of wings2

Capacity of 100kg per one wing

Ball bearing

Board thickness 18-40mm

Plate filling

The colors of the handles

natural

Catalog to download

Instructionto download

Configurator for systems

Guide

Scheme of the system

MP-100

guides

rail fastenings

assembling of anodized alumium cover

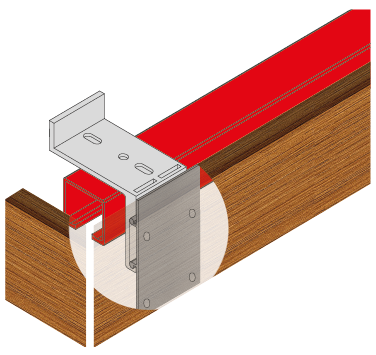

assembling of wooden cover

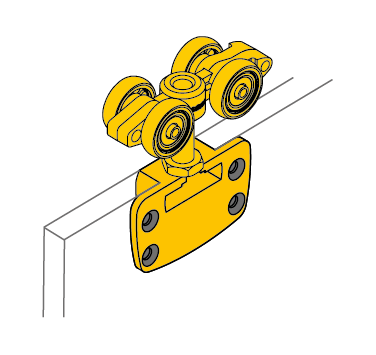

side assembling

Rails and profiles

name upper rail K-075 cover for K-075 c-profile
number 11000000​ 11190000​ 16000000
material
drawing

Cover parts

name fastening for ceiling fastening for wall corner RT8 fastening for wooden cover
number 11191000 11192000 11193000 11193100
material
drawing

Hardware set

name hardware MP-100 fastening to board PB-075 stopper KPZ-075 white guide AO-075 rope holder SYNCHRONIK angle SYNCHRONIK rope tension SYNCHRONIK rope 8 mb
number 11120000 11121000 11141000 11150000 46810000 46810000 46810000 46810000
material
drawing
11068000 4 4 2 4 1 1 1 1

Single articles

name rail holder to ceiling KK-075 rail holder to wall with distance and screw SKL-M5 rail holder to wall with distance SKL-075 rails (K-075 and K-076) connector LKU-075
number 11132000 11135000 11134000 11133000
material
drawing

Replacement articles

name side fastening PBB-075 brown guide AO-075 black guide AO-075
number 11180000 11151000 11147000
material
drawing

Optional elements

name railing handle soft closing
number silver 91299000
white 91299001
black mat 912990003
black industrial 912990008		 91680000
material
drawing
