Construction systems

Standard

Application: system for interior passage door without threshold

Door without threshold

Number of wings1, 2

Capacity of 100kg per one wing

Ball bearing

Board thickness 18-40mm

Plate filling

Door without threshold

Number of wings1, 2

Capacity of 100kg per one wing

Ball bearing

Board thickness 18-40mm

Plate filling

The colors of the handles

natural


Catalog to download	Instructionto download	Configurator for systems	Guide

Catalog to download

Instructionto download

Configurator for systems

Guide

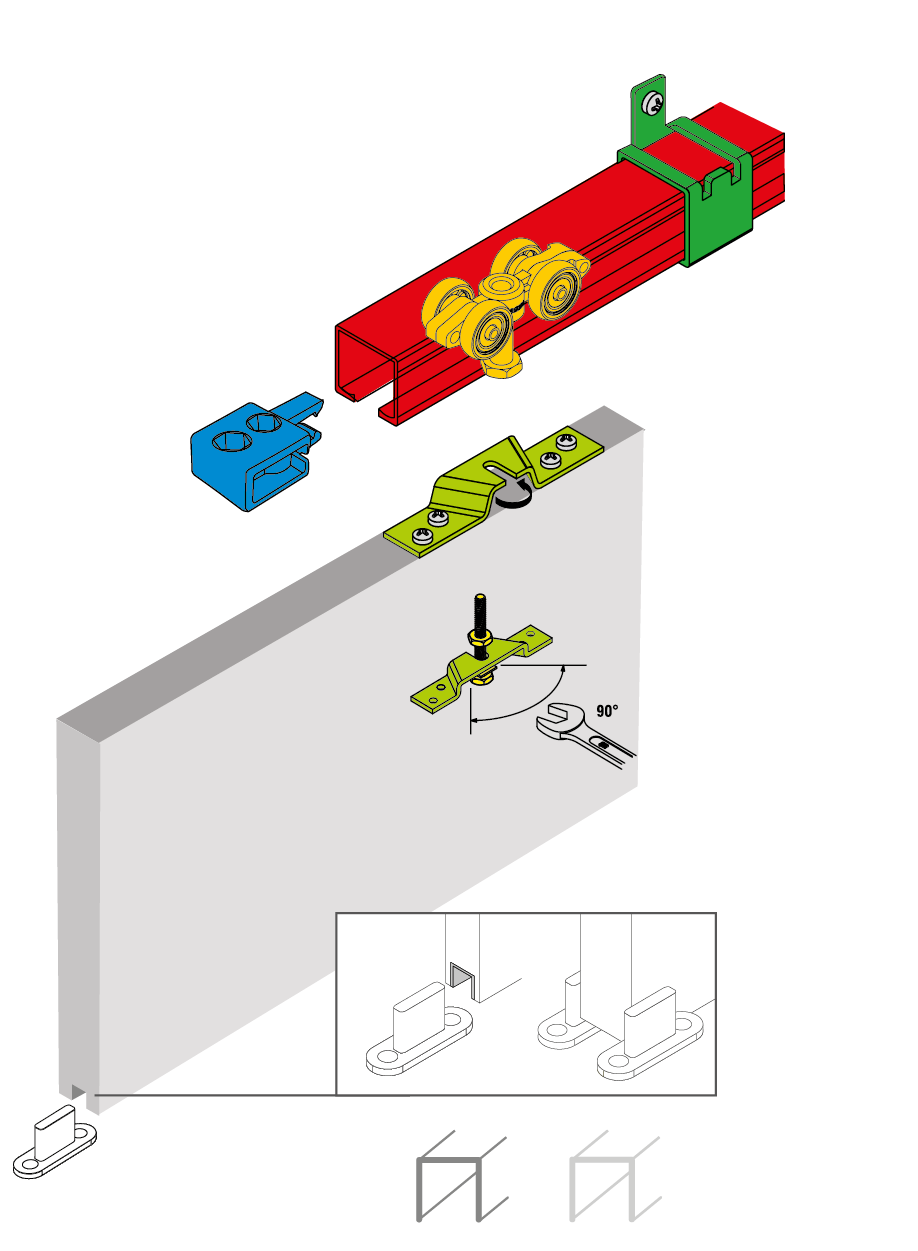

Scheme of the system

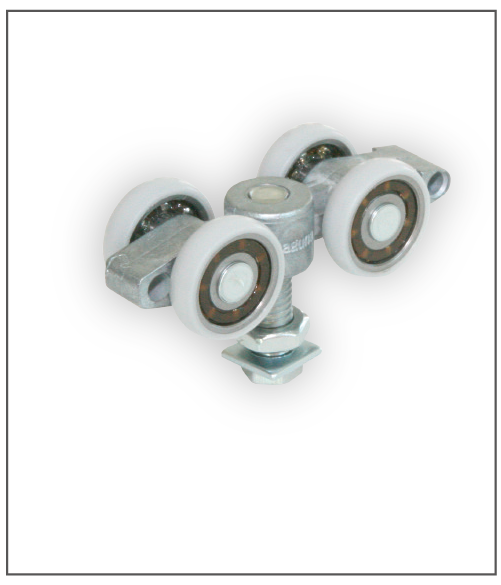

MP-100

guides

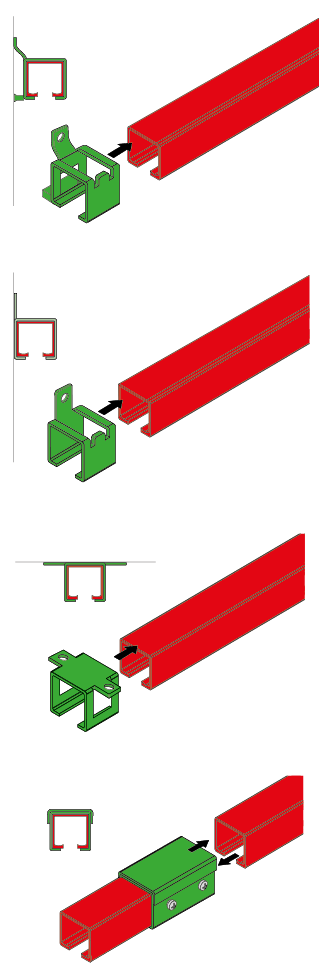

rail fastenings

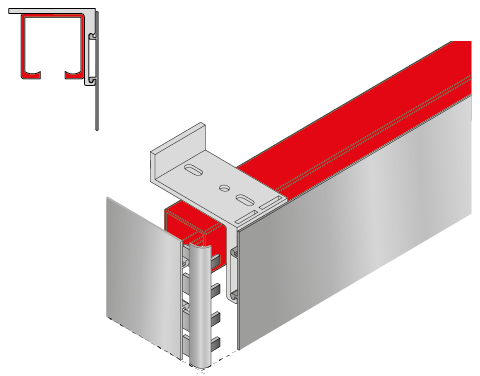

assembling of anodized alumium cover

assembling of wooden cover

side assembling

Rails and profiles

name	upper rail K-075	cover for K-075	c-profile
number	11000000	11190000	16000000
material
drawing

Cover parts

name	fastening for ceiling	fastening for wall	corner RT8	fastening for wooden cover
number	11191000	11192000	11193000	11193100
material
drawing

Hardware set

name	hardware MP-100	fastening to board PB-075	stopper KPZ-075	white guide AO-075
number	11120000	11121000	11141000	11150000
material
drawing
11162000	2	2	2	2
11163000	4	4	2	4

Single articles

name	rail holder to wall with screw SKU-M5	rail holder to wall SKU-075	rail holder to ceiling KK-075	rail holder to wall with distance and screw SKL-M5	rail holder to wall with distance SKL-075	rails (K-075 and K-076) connector LKU-075
number	11136000	11131000	11132000	11135000	11134000	11133000
material
drawing

Replacement articles

name	side fastening PBB-075	brown guide AO-075	black guide AO-075
number	11180000	11151000	11147000
material
drawing

Optional elements

name	railing handle	soft closing
number	silver 91299000 white 91299001 black mat 912990003 black industrial 912990008	91680000
material
drawing
