Laguna Fabryka Okuć > Produkty > Systems for inner passage door > Sliding doors in aluminum frame > Suspend 18
Construction systems

Suspend 18

Application: system for inner sliding door without threshold in INTERO aluminum frame

Door without threshold

Number of wings1, 2

Capacity of 50kg per one wing

Ball bearing

Board thickness 18mm

Plate filling

Glass with a thickness of 4mm

Glass filling

The colors of the handles

natural
champagne
gold

Catalog to download

Instructionto download

Configurator for systems

Guide

Scheme of the system

MP-100

rail fastenings

assembling of anodized alumium cover

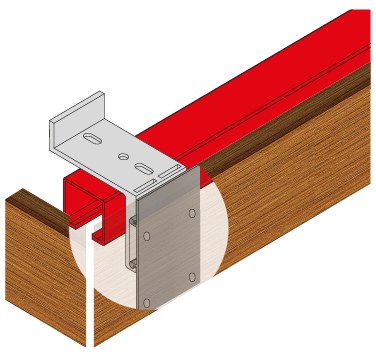

assembling of wooden cover

Rails and profiles

name upper rail K-075 cover for K-075 horizontal profile RAMA connecting profile RAMA grip profile INTERO
number 11000000​ 11190000 88830000 88870000 88130000
material
drawing

Cover parts

name fastening for ceiling fastening for wall corner RT8 fastening for wooden cover
number 11191000 11192000 11193000 11193100
material
drawing

Hardware set

name hardware MP-100 fastening to board PB-075 door stopper KPZ-075 lower guide adapter Suspend 18
number 11179000 11121000 11141000 1153000 11183000
material
drawing
11173000 2 2 2 1 2

Single articles

name rail holder to ceiling KK-075 rail holder to wall with distance and screw SKL-M5 rail holder to wall with distance SKL-075 rails (K-075 and K-076) connector LKU-075
number 11132000 11135000 11134000 11133000
material
drawing

Optional elements

name soft closing STANDARD 50kg hole plug brush clip anti-impact brush with glue wedge for glass MULTIOMEGA
number 91680000 98212000 98194000 grey 90088000
white 90088001
black 90088006		 88176000
material
drawing
Buy this product in the online store
