Aluminium systems

Sima

Application: stable solution for sliding door made of board and grip facing with the filling

Boarding filing

Number of wingsmin. 1

Capacity of 50kg per one wing

Ball bearing

Board thickness 18 mm

Plate filling

The colors of the handles

natural

Catalog to download

Instructionto download

Configurator for systems

Guide

Scheme of the system

Rails and profiles

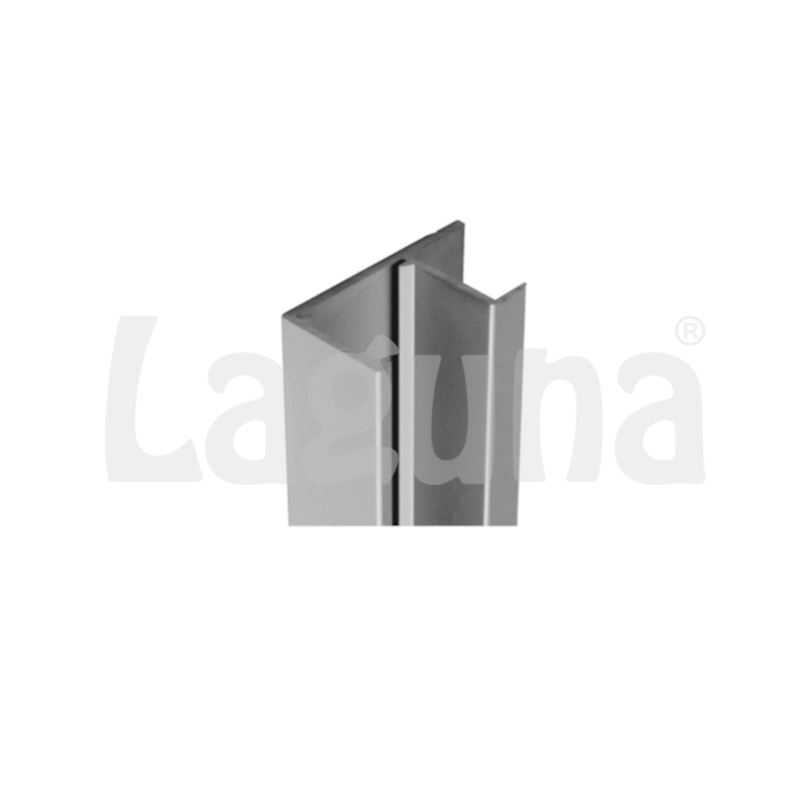

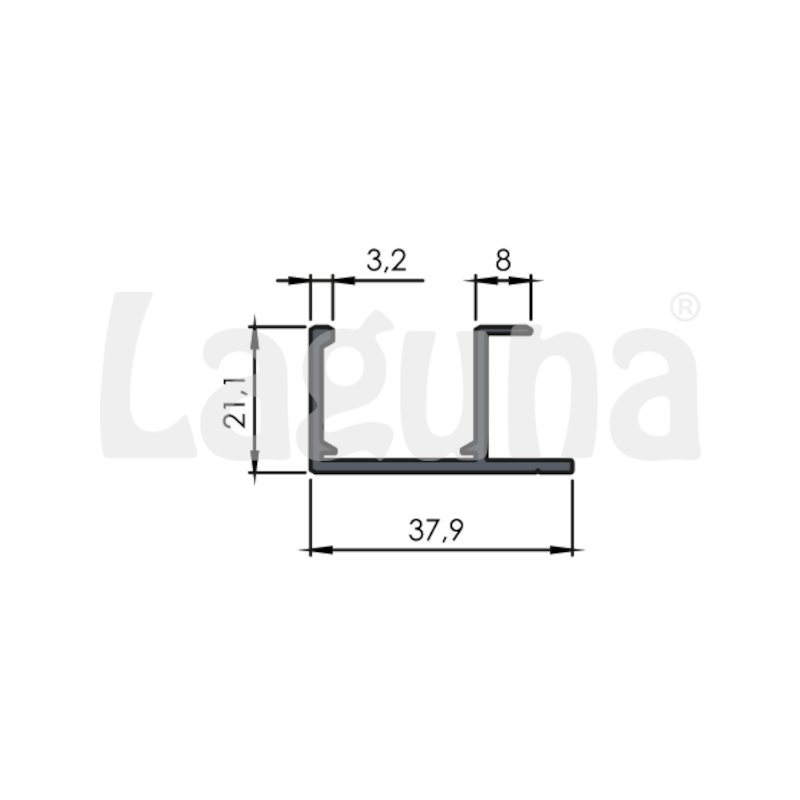

name uniwersal upper track lower track GAMA C-18 profile connecting profile DOMUS grip profile SIMA
number 88840000 88209000 88660000 88180000 88110000
material
drawing

Basic elements

name SPRINART GAMA hardware solid pro guide witch washer symetrical handles - S solid pro guide witch washer asymetrical handles - NS universal stopper SOLID
number 88811300 88217100 88217200 88807000
material
drawing

Upper racks (interchangeably)

name tripple SOLID upper track SOLID upper track SINGLE upper track
number 88561000 88940000 88740000
material
drawing

Lower racks (interchangeably)

name lower track GAMA II lower track RAMA lower track RAMA SINGLE lower rail L-051 lower track RAMA IV double lower track RAMA IV single clip to tracks GAMA track cover RAMA lower track RAMA IV tripple
number 88930000 88551000 88750000 28630000 88564000 88562000 98203000 88881000 88563000
material
drawing

Profiles (interchangeably)

name T-profile L-profile LI0/20 L-profile LI 0/20 flat profile P2 connecting profile DOMUS II
number 88510000 88910000 88640000 88890000 88180000
material
drawing

Hardwares (interchangeably)

name SLIM hardware SPRING RAMA hardware SPRING GAMA hardware SPRINART RAMA hardware
number 88800000 88810100 88811100 88811200
material
drawing

Guides (interchangeably)

name SOLID PLUS guide - ball bearings SOLID guide - ball bearings SOLID guide - no ball bearings
number 88219000 88812000 88819000
material
drawing

Stoppers (interchangeably)

name universal stopper stopper RAMA with set screw stopper RAMA lI
number 88802000 88859100 88216000
material
drawing

Track plug

name lower track plug triple RAMA IV lower track plug double RAMA IV lower track plug single RAMA IV upper track plug double upper track plug single
number 88893000 8889200 88891000 88841010 88841030
material
drawing

Optional elements

Optional elements for aluminium systems
