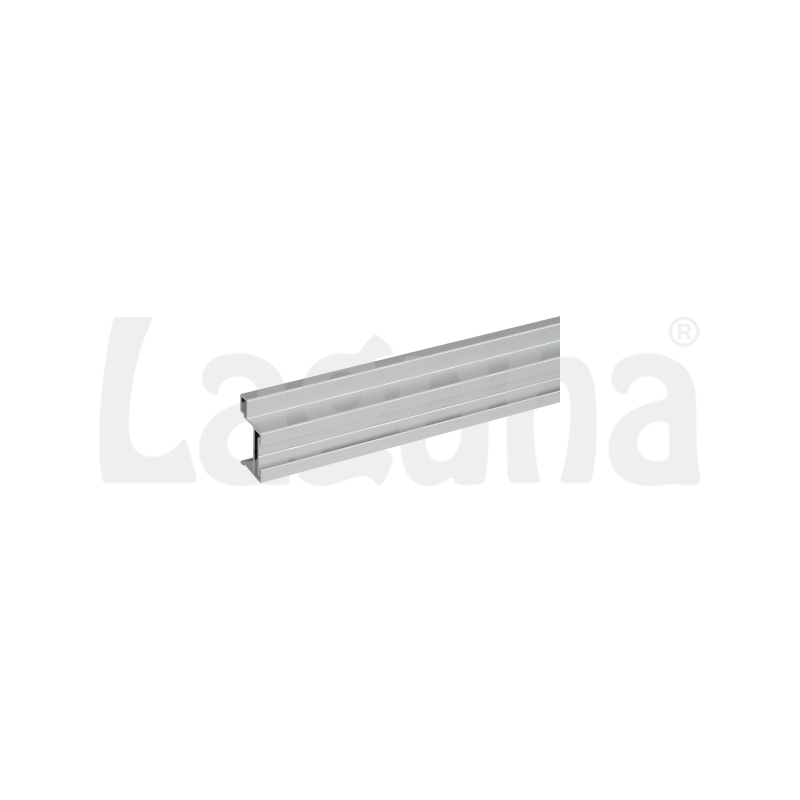

Modern Wide R-19

Application: innovative shape of the handle for sliding systems allowing to connect several types of fillings

Combination of diffrent filings

Number of wingsmin. 1

Capacity of 50kg per one wing

Ball bearing

Board thickness 19 mm

Plate filling

Glass with a thickness of 4, 6 mm

Glass filling

The colors of the handles

natural

Catalog to download

Instructionto download

Configurator for systems

Guide

Scheme of the system

4 mm glass/mirror

19 mm board

Rails and profiles

name uniwersal upper track lower track GAMA C-19 profile connecting profile H-19 grip profile MODERN WIDE R-19
number 88840000 88209000 88060000 88050000 88020000
material
drawing

Basic elements

name RAMA PLUS hardware solid pro guide witch washer symetrical handles - S solid pro guide witch washer asymetrical handles - NS SOLID stoper
number 88814000 88217100 88217200 88807000
material
drawing

Upper racks (interchangeably)

name tripple SOLID upper track SOLID upper track SINGLE upper track
number 88561000 88940000 88740000
material
drawing

Lower racks (interchangeably)

name lower track GAMA II lower track RAMA lower track RAMA SINGLE lower rail L-051 lower track RAMA IV double lower track RAMA IV single clip to tracks GAMA track cover RAMA lower track RAMA IV tripple
number 88930000 88551000 88750000 28630000 88564000 88562000 98203000 88881000 88563000
material
drawing

Profiles (interchangeably)

name connecting profile RAMA 19 horizontal profile RAMA 19
number 88040000 88030000
material
drawing

Hardwares (interchangeably)

name RAMA hardware MULTI OMEGA hardware MULTI RAM hardware SLIM hardware SPRING RAMA hardware SPRING GAMA hardware SPRINART RAMA hardware SPRINART GAMA hardware
number 88810000 88816000 88817000 88800000 88810100 88811100 88811200 88811300
material
drawing

Guides (interchangeably)

name SOLID PLUS guide - ball bearing SOLID guide - ball bearing SOLID guide - no ball bearing
number 88219000 88812000 88819000
material
drawing

Stoppers (interchangeably)

name universal stopper stopper RAMA with set screw stopper RAMA lI
number 88802000 88859100 88216000
material
drawing

Track plug

name lower track plug triple RAMA IV lower track plug double RAMA IV lower track plug single RAMA IV upper track plug double upper track plug single
number 88893000 8889200 88891000 88841010 88841030
material
drawing

Optional elements

Optional elements for aluminium systems
