Lider

Application: economic system without threshold for interior passage door with plastic guide

Door without threshold

Number of wings1, 2

Capacity of 50kg per one wing

Needle bearing

Board thickness 18-40mm

Plate filling

The colors of the handles

natural

Catalog to download

Instructionto download

Configurator for systems

Guide

Scheme of the system

MP-075/T

guides

rail fastenings

assembling of anodized alumium cover

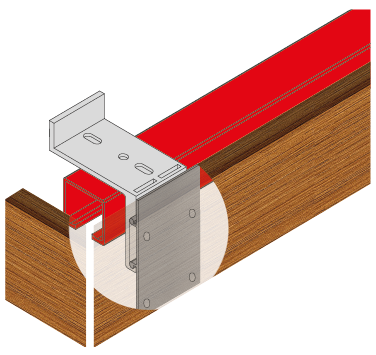

assembling of wooden cover

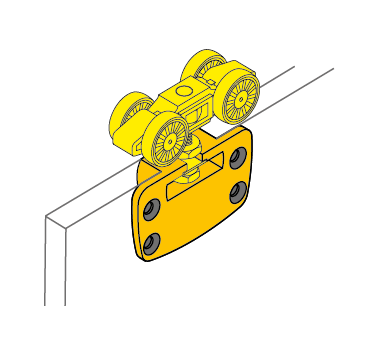

side assembling

Rails and profiles

name upper rail K-075 cover for K-075 c-profile
number 11000000​ 11190000​ 16000000
material
drawing

Cover parts

name fastening for ceiling fastening for wall corner RT8 fastening for wooden cover
number 11191000 11192000 11193000 11193100
material
drawing

Hardware set

name hardware MP-075/T fastening to board PB-075 stopper KPZ-075 white guide AO-075
number 11178000 11121000 11141000 11150000
material
drawing
11061000 2 2 2 2
11062000 4 4 2 4

Single articles

name rail holder to wall with screw SKU-M5 rail holder to wall SKU-075 rail holder to ceiling KK-075 rail holder to wall with distance and screw SKL-M5 rail holder to wall with distance SKL-075 rails (K-075 and K-076) connector LKU-075
number 11136000 11131000 11132000 11135000 11134000 11133000
material
drawing

Replacement articles

name side fastening PBB-075 brown guide AO-075 black guide AO-075
number 11180000 11151000 11147000
material
drawing

Optional elements

name railing handle
number silver 91299000
white 91299001
black mat 912990003
black industrial 912990008
material
drawing
