Furniture systems

Fast R / Fast S Ram

Application: system for sliding door for high and low furnishings in recessed tracks

For high and low furnishings

Number of wings1, 2, 3

Capacity of 50kg per one wing

Ball bearing

Plastik z weels

Board thickness 10-42 mm

Plate filling

For high and low furnishings

Number of wings1, 2, 3

Capacity of 50kg per one wing

Ball bearing

Plastik z weels

Board thickness 10-42 mm

Plate filling

The colors of the handles

natural


Catalog to download	Instructionto download	Configurator for systems	Guide

Catalog to download

Instructionto download

Configurator for systems

Guide

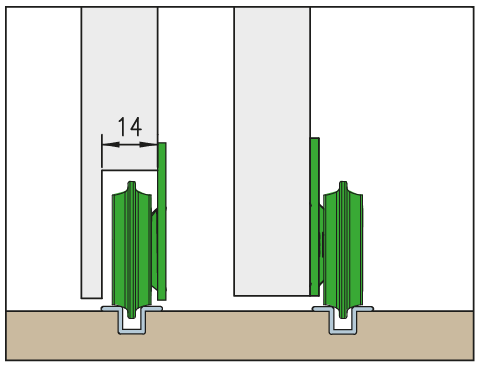

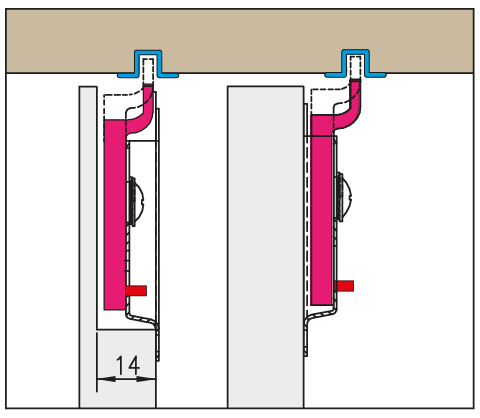

Scheme of the system

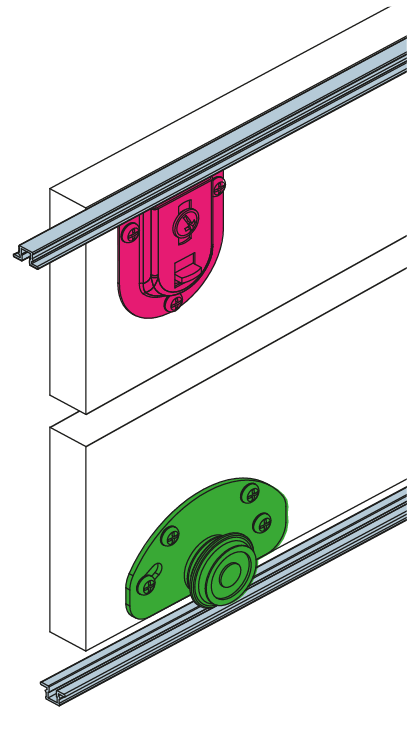

FAST R 50 KG

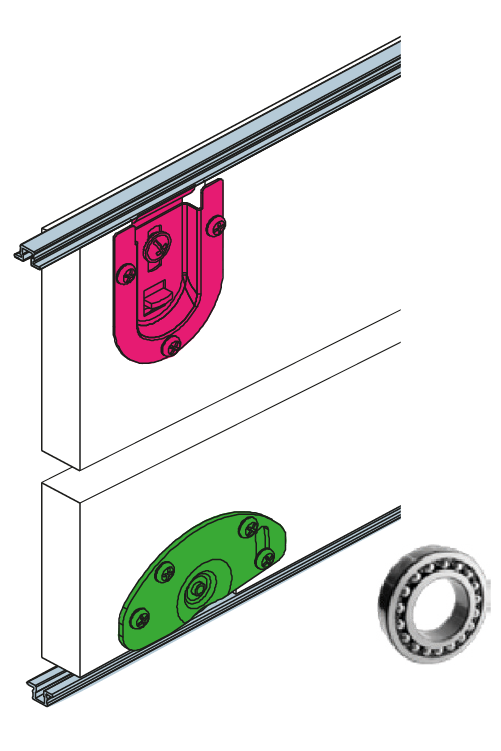

FAST R 50 KG - WHEELS WITH BALL BEARING

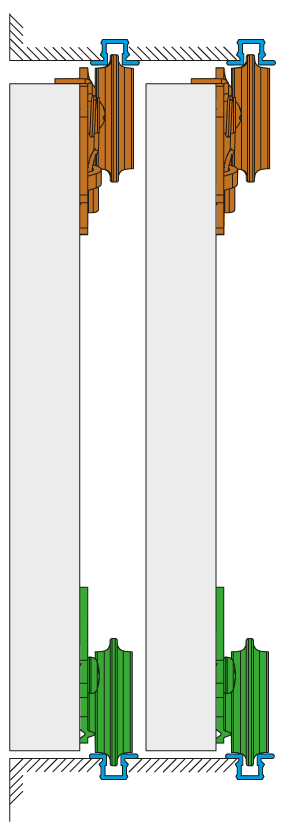

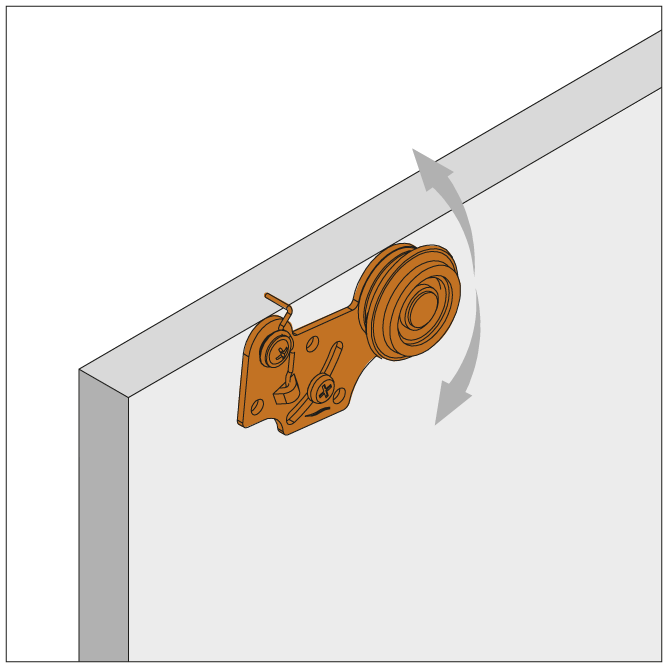

FAST S RAM 50 KG

Rails and profiles

name	inserted track F-053
number	21500000
material
drawing

Hardware set

FAST R 50 kg

name	sliding upper hardware FAST G/R	lower hardware FAST 50/R	stop latch FAST G/R
number	24417000	28811000	24418000
material
drawing
24450000	2	2	1
24451000	4	4	2
24452000	6	6	3

FAST S RAM 50 kg

name	upper hardware with spring FAST S/R	lower hardware FAST 50/R
number	24423000	28811000
material
drawing
24463000	2	2
24464000	4	4
24465000	6	6
